GPS Network Rover Results

The Real World Accuracy of Network GPS Rover Surveying Equipment.

What is GPS?

GPS is the term given to the Global Positioning System (GPS) that we all use in some form or other to locate ourselves in the world.  Most of us can only get our position to within 10m using over the counter GPS devices.  Surveyors, however, can achieve an accuracy within millimetres using surveying GPS equipment and software. It is worth pointing out that not only is there the GPS system of satellites, there is also the GLONASS and the Galileo satellite systems in use also.  Effectively, the more satellites that you can get information from, the more precise your position will be.

What is a GPS Rover?

A GPS Rover is a piece of equipment that can receive the signals from the GPS Satellite System to give an instantaneous 3-dimensional position anywhere in the world.  For a GPS Rover to be accurate it needs to receive corrections from a GPS Base Station.

What is a Network GPS Rover?

GPS Network Rovers have been around since 2007 in the UK.  These GPS Network Rovers receive corrections to the GPS signals through a paid service that use multiple known base stations throughout the UK. This service means that no GPS Base Station needs to be set up on each site providing corrections to the GPS Rovers being used on that site.

Network GPS Rover, GPS Network Rover, Topcon Hiper SR Network Rover

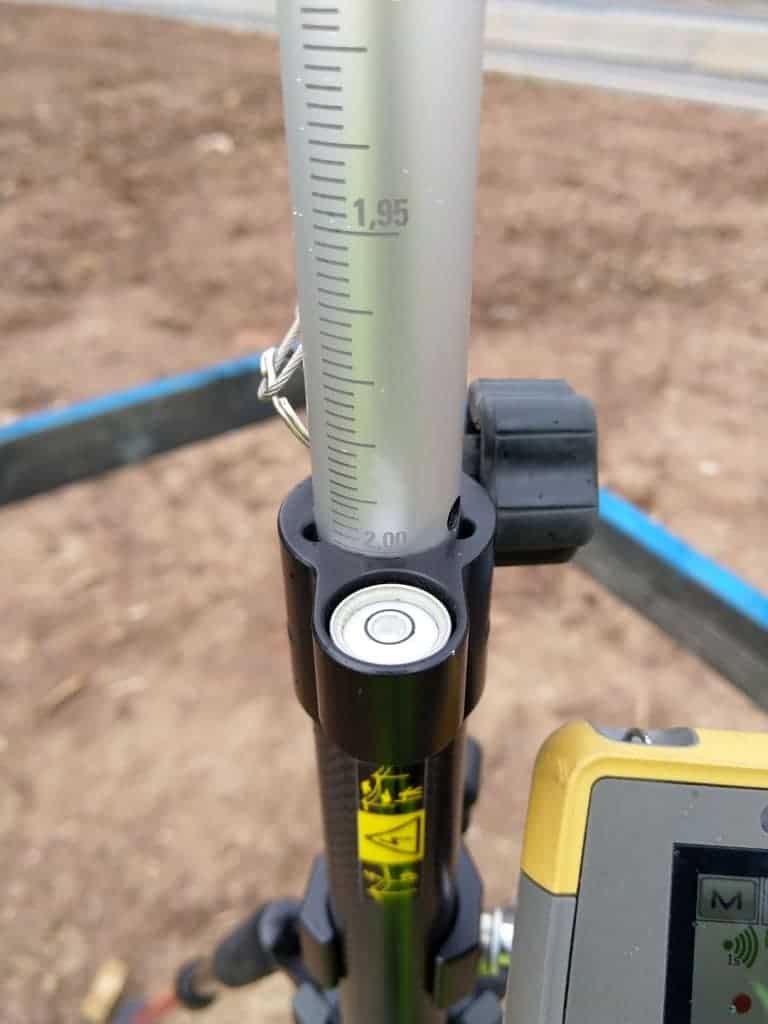

Network GPS Rover Plumbed Up with a Bi-Pod

How Accurate are Network GPS Rovers?

We are told that Network GPS Rovers have cm accuracy. This means that with the correction service that Network GPS Rover knows its position within a 20cm sphere (the size of a small stone) anywhere in the world. I have been using Network GPS Rovers for the past 10 years. (I do also use the RTK Base Station GPS System, and this would be my preferred method). It was in 2013 that I was using a Leica Network GPS Rover that I first noticed some discrepancies with the results that I was getting with this equipment.  The main discrepancy that I noticed was a difference of around 100mm in level on the same point after collecting numerous observations.  Since then I have been cautious about using GPS Network Rovers for setting control points on sites. I still prefer to use GPS to establish a long base line and then traverse all the control points in with a total station.

Recently though, I had a different Network GPS Network Rover and decided to repeat the process that led to the discrepancies I found all those years ago to see if they are still present. But first what do I mean by accurate?

What is accuracy and precision in surveying?

Accuracy refers to how close the measurement is to the true value. In this case how close is the Easting, Northing and Elevation to the true value.

Precision refers to how close repeated measurements are to each other. In this case how close together are the measured Eastings, Northings and Elevations.

Which Network GPS Rover has been selected for this test?

For this test I have used a Topcon Hiper SR with a Topcon FC-5000 Field Controller with corrections from the TopNET service.  The detail pole is a Topcon specific detail pole for the Hiper SR GPS unit and a bi-pod to keep the GPS unit still throughout the measurement recordings.

Methodology for the test on the Network GPS Network Rover?

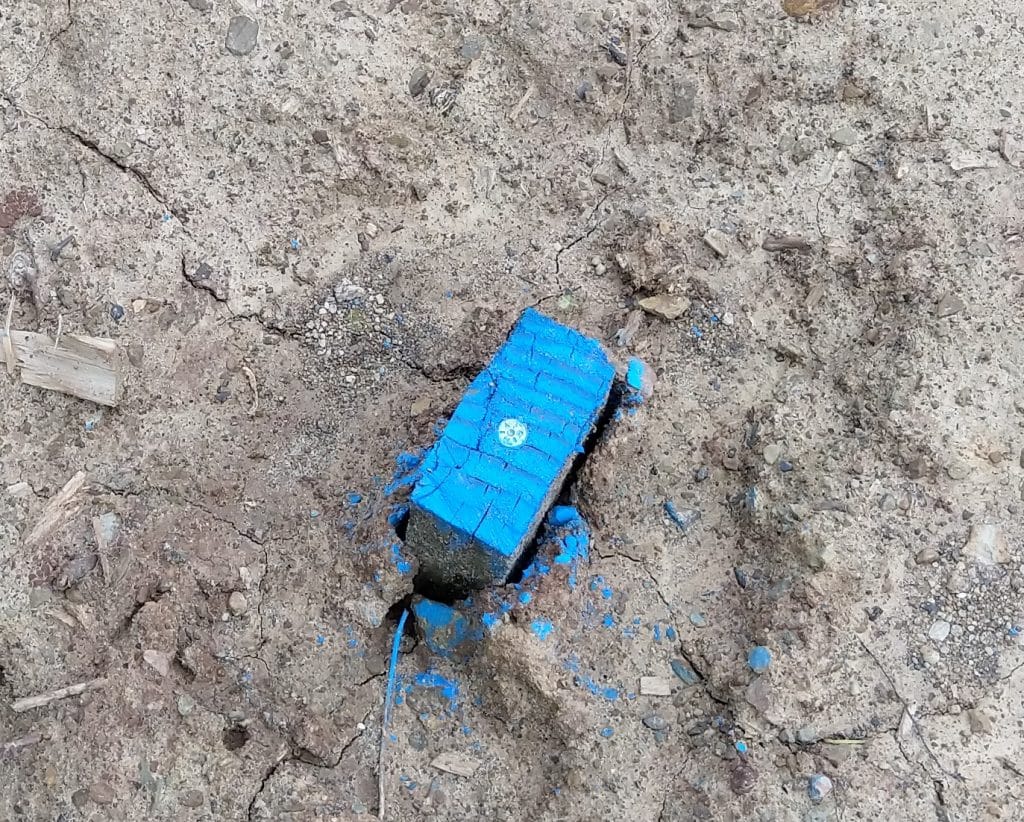

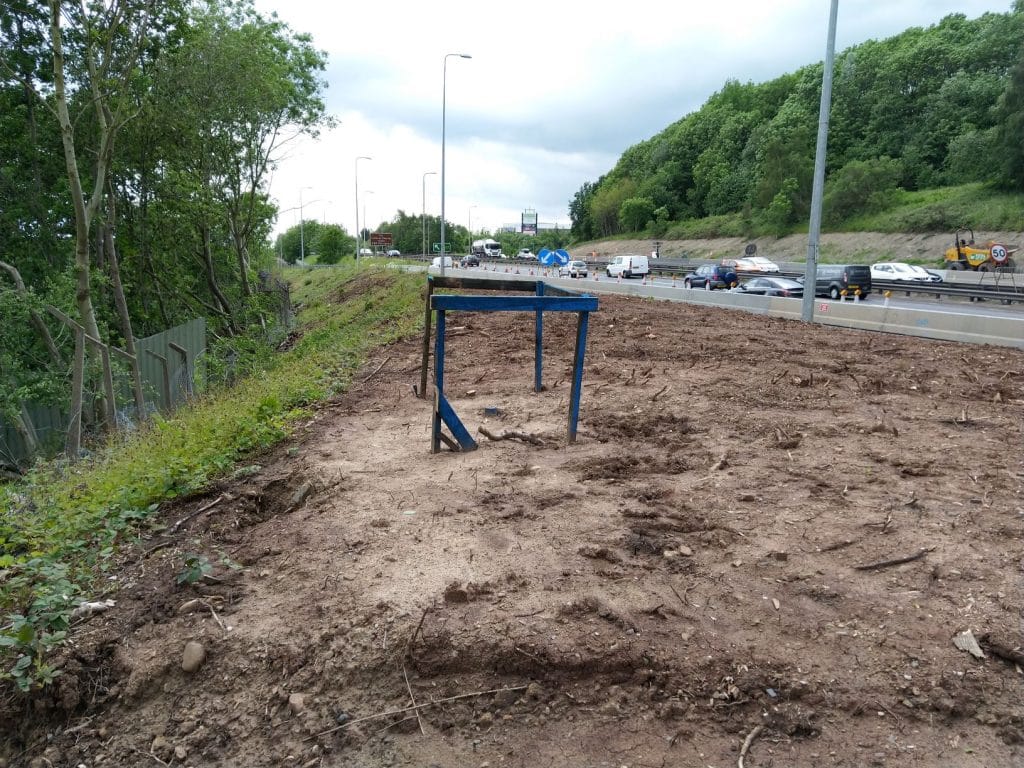

I have set up a control point on a site within the UK. This is a PK Nail (a nail with a circular depression in it) that is in a stake that has been driven into the ground by at least 600mm. This control point has been protected from site traffic and installed in such a way that it is not subject to any positional movement.  The idea of this is that it replicates the real-world environment of where this equipment will be used.

  • GPS Network Rover
  • GPS Network Rover Results

Using a bi-pod ensures that the GPS Hiper SR unit stays in a fixed position. This is much more accurate than holding it by hand.  Holding it by hand could result in a large movement in the easting and northing direction compared to the quoted accuracy from the field controller.  The field controller would indicate that the accuracy would be within 2mm, but if I was holding the detail pole free-handed then the GPS unit could be moving by more than 20mm during the readings.

The Topcon Hiper SR unit was always set at a height of 2m above the PK Nail for each of the tests. With the base point of the detail pole set on the PK Nail centre, the detail pole was plumbed up using the circular vial on the detail pole and secured with the bi-pod.  The detail pole was checked for plumbness in each direction before being used for this experiment.  The measurements were taken for a period of 60 seconds each time.  Once the Hiper SR was set above the known point, the FC-5000 was connected to the Hiper SR via Bluetooth and connected to the TopNet service for corrections.  For this experiment we are only interested in taking reading whilst we have a fixed solution, so the status of the system was checked to ensure that only a fixed solution was used.

Once the detail pole was plumb, the Hiper SR was 2m above the PK Nail, and we had a fixed solution, the point was surveyed seven times over the course of a week.  This was done at random intervals over the course of the week, sometimes in the morning, sometimes in the afternoon and sometimes in the morning and afternoon.  The amount of time for each of the seven measurements was always 60 seconds in duration.

What are the three different GPS Solutions?

There are three solution states for the GPS Rover.  The first and least accurate is the Autonomous Solution, this may give an accuracy in the order of metres.  The second solution is called Float and may have an accuracy from 100mm to 500mm.  The third solution is the fixed solution and will have an accuracy of less than 25mm.  For this experiment we will only be using the fixed solution and because we are taking reading over the course of 60 seconds the accuracy should be greater that the 25mm.  The FC-5000 field controller will indicate an accuracy of 1mm in both horizontal and vertical directions.

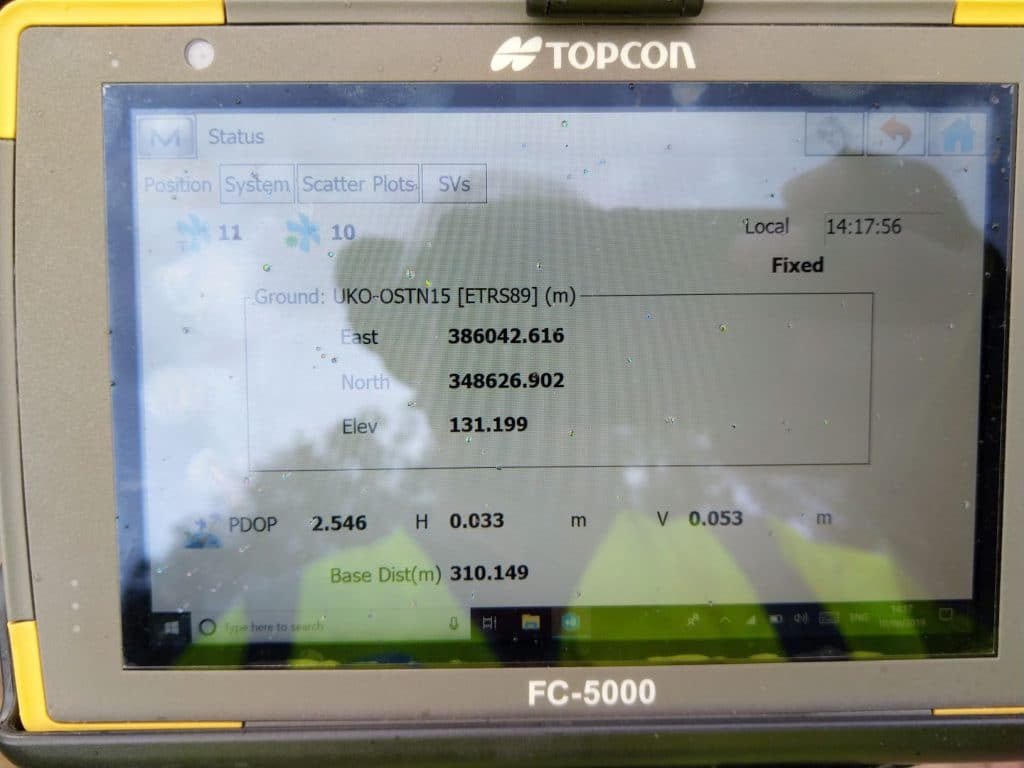

Fixed GPS Solution
The Fixed GPS Solution for Surveying.

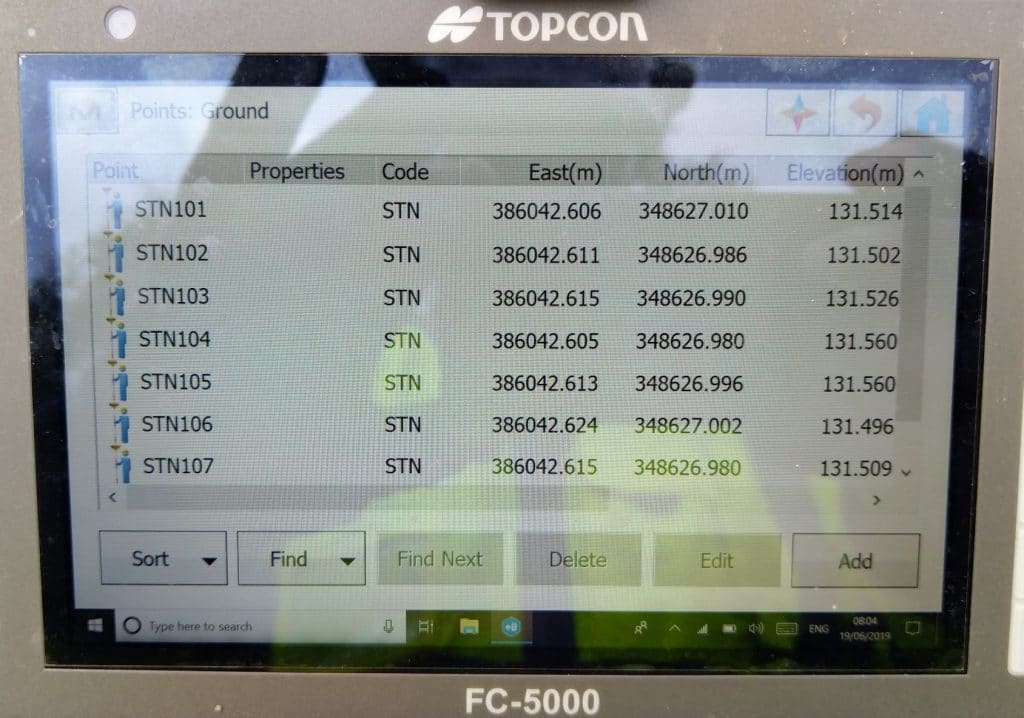

Results of the Seven Network GPS Rover Observations.

Point NameEastingNorthingElevation
STN101348627.0103386042.6063131.5139
STN102348626.9862386042.6114131.5017
STN103348626.9905386042.615131.5264
STN104348626.9803386042.6054131.5603
STN105348626.996386042.6134131.5602
STN106348627.0024386042.6239131.4962
STN107348626.9803386042.6153131.5091
Table of the Observations from the Network GPS Rover.

Looking at the results above we can see the average of all the positions is

Easting:      348626.992

Northing:   386042.613

Elevation:   131.524

But when we look at the maximum difference in these positions, we can see

Easting:       30mm

Northing:     19mm

Elevation:     64mm

Conclusion.

From the above differences we can see that there are significant differences in the positions given by the Network GPS Rover for the same point.  The point hasn’t moved so the difference in coordinates can only be from the Network GPS Rover and the corrections from the TopNet Service.

It must be said that the above accuracy is very good.  The signals from the satellites are travelling over 20,200km or 12,550miles to reach the GPS Receiver so to be able to coordinate the same point to within 100mm is pretty amazing.

Knowing that the Network GPS Rover using a correction service can give the differences detailed above we should be mindful to use this for works that have a tolerance greater than the differences seen.  So we could use the Network GPS Rover for setting the line of some kerbs, but we shouldn’t be using it for setting the levels of the kerbs.


External References for Network GPS Rovers.

This page represents the real world findings whilst using Network GPS Rovers and the accuracy they can achieve. If you want more information on the accuracy of Network GPS Rovers then the following links to external sites may be of interest.

Research paper from Nottingham University.

Quality assessment of a network-based RTK GPS service in
the UK

GPS Accuracy from the GPS.gov website.

GPS Accuracy
